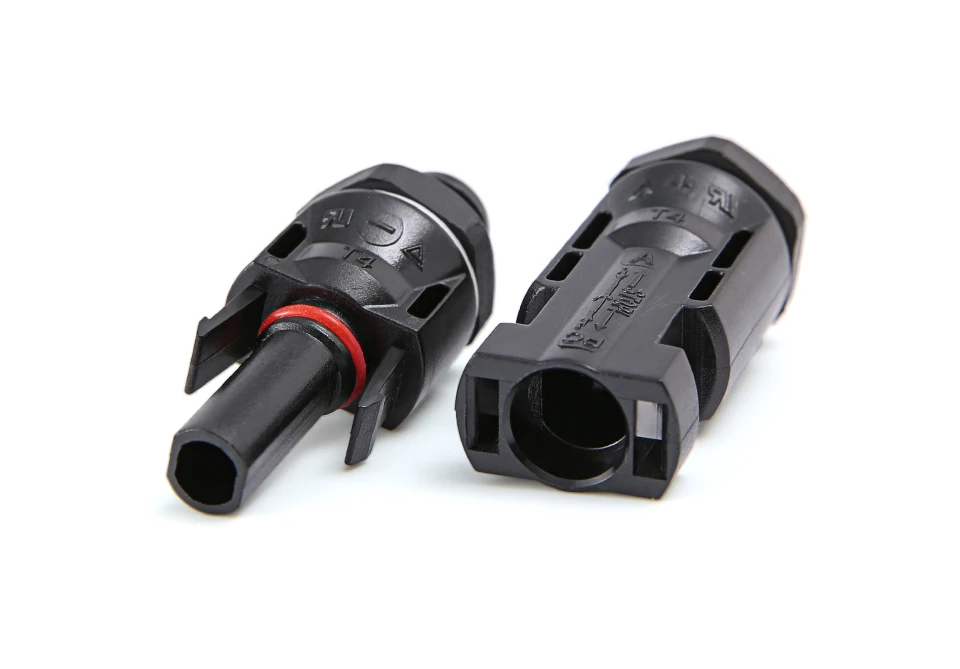

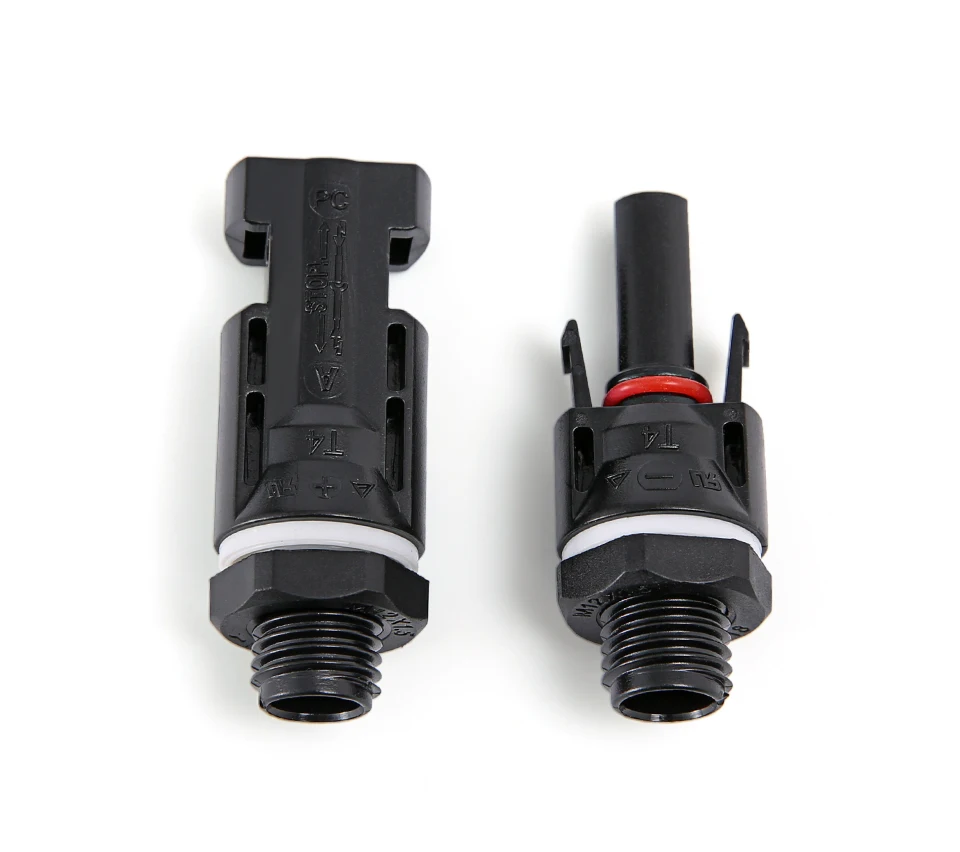

Solar PV 1000V connector for solar panel mount and inverter Panel solar connector solar coupler IP67

R166.44 R195.82
  • Ships From:

  • Color:

Buy With Confidence

100% Safe Payment


;

  • Description

    Specifications

    * Rated current: 30A (2.5m㎡–6m㎡)

    * Rated voltage: 1000V DC

    * Connector contact resistance:≤0.5mΩ

    * Degree of waterproof: IP67

    * Flammability rating: UL94-V0

    * Safety: Class II

    * Suitable cable: 2.5m㎡–6m㎡( include AWG13,AWG12, AWG11,AWG10 )

    * Adapter Wire: OD 5mm-7mm

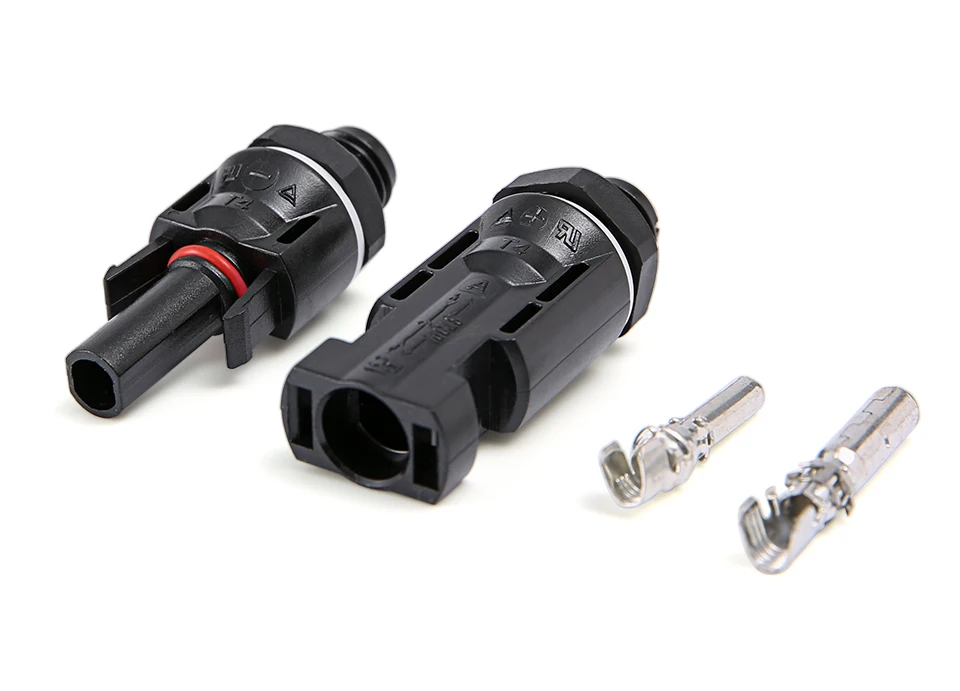

    * Connector conductor material: copper, Tin

    * Connector Insulation material: PPO/PPE

    * Insertion force: less or equal to 50N

    * Withdrawal force: over or equal to 50N

    * Operating temperature range: -40℃~ +85℃

    * Connection: Clamp
