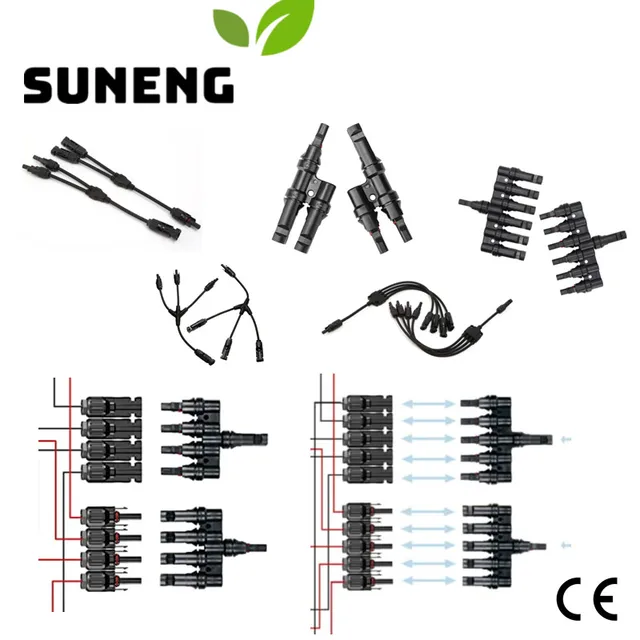

Free Shipping Solar PV Connector 2T 3T 4T 5T 6T Branch parallel connection 30A 1000V Electrical PV Panel Cable Connector

From R166.44
  • Ships From:

  • Color:

  • Connector Type:

Buy With Confidence

100% Safe Payment


;

  • Description


    T Branch Solar PV Connector 2T 3T 4T 5T 6T Branch parallel connection 30A 1000V Electrical PV Panel Cable Connector

    Features

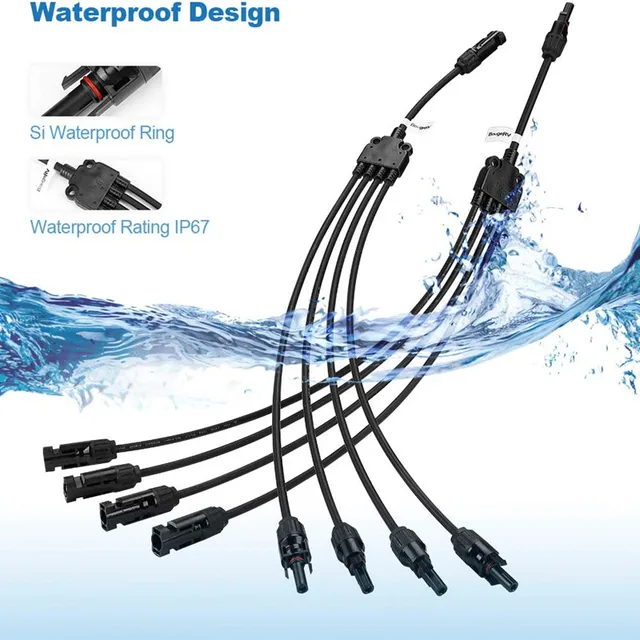

    • * Waterproof grade IP68: adopts high-quality waterproof ring, with waterproof and dustproof effect

    • * Thicker copper core, brass tinned inner core: more anti-corrosion, anti-oxidation, and increase service life

    • * The shell is made of PPO high-strength material: high heat resistance, low flammable point, wear-resistant and durable

    • * Insulation parts: The hole contacting head of the product is equipped with a guiding insulator, which plays a role of guiding and preventing electric shock

    • *Standard size: The connection is connected by pressing, and the male and female heads are equipped with self-locking mechanism, which can be opened and closed freely.

    • * Connection: 2.5mm2/4mm2/6mm2 ( 14AWG/ 12AWG/ 10AWG)

    Datasheet

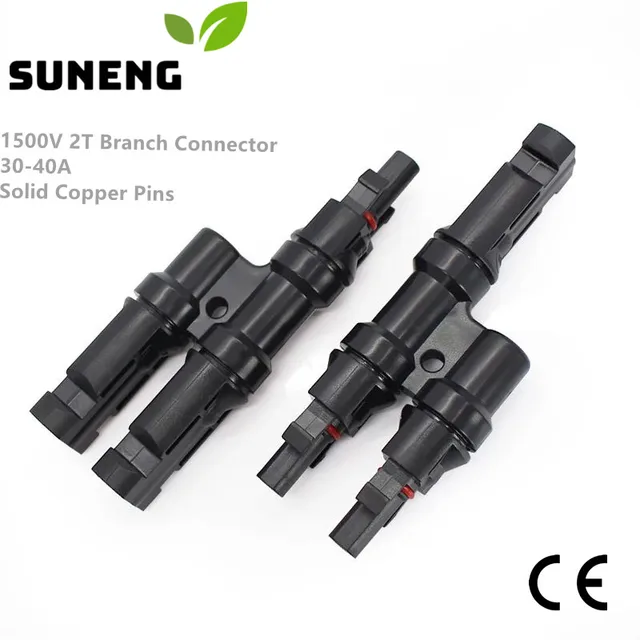

    2 in 1 branch Connector

    Specification:

    Rated voltage: 1000V DC

    Rated current: 30A

    Waterproof degree: IP67

    Material: PPO

    Contact material: Copper sliver plated

    Operating temperature: -40°C~+110°C

    Flame class: UL94-V0

    Suitable cable: 1.31mm²/4mm²/6mm²(AWG16/12/10)

    Locking system: Snap in

    Connecting system: crimping connection

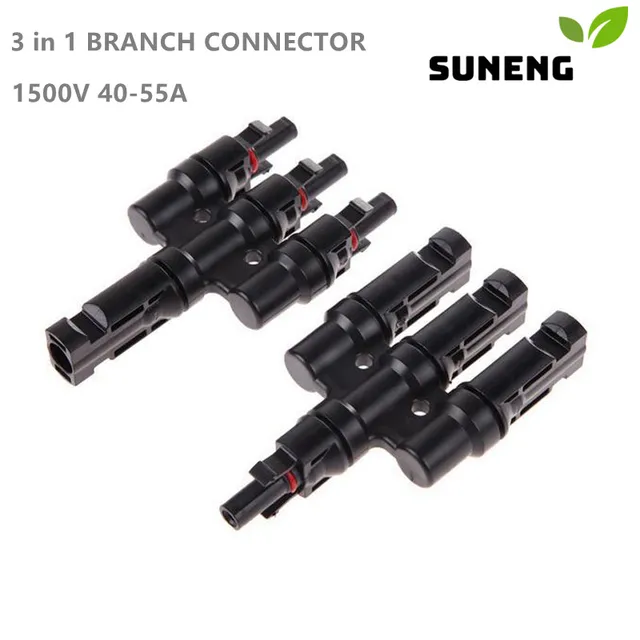

    3 in 1 branch Connector

    Specification:

    Rated voltage: 1000V DC

    Rated current: 30A

    Waterproof degree: IP67

    Material: PPO

    Contact material: Copper sliver plated

    Operating temperature: -40°C~+110°C

    Flame class: UL94-V0

    Suitable cable: 1.31mm²/4mm²/6mm²(AWG16/12/10)

    Locking system: Snap in

    Connecting system: crimping connection


    4 in 1 branch Connector


    Specification:

    Rated voltage: 1000V DC

    Rated current: 30A

    Waterproof degree: IP67

    Material: PPO

    Contact material: Copper sliver plated

    Operating temperature: -40°C~+110°C

    Flame class: UL94-V0

    Suitable cable: 1.31mm²/4mm²/6mm²(AWG16/12/10)

    Locking system: Snap in

    Connecting system: crimping connection

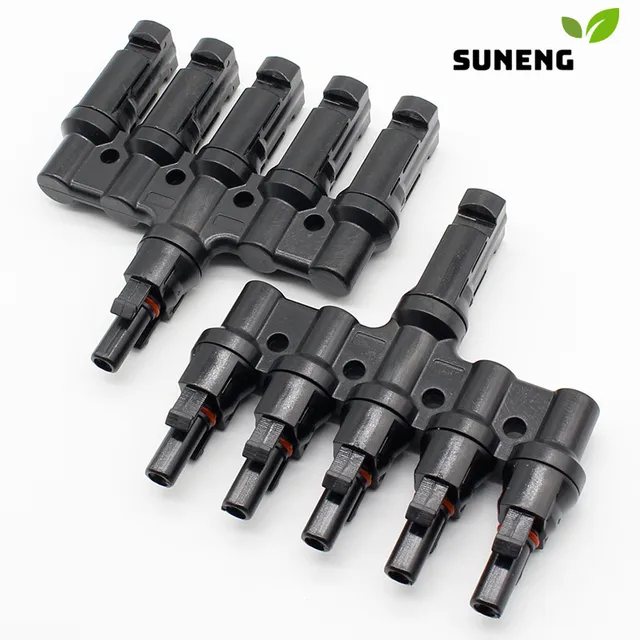

    5 in 1 branch Connector


    Specification:

    Rated voltage: 1000V DC

    Rated current: 30A

    Waterproof degree: IP67

    Material: PPO

    Contact material: Copper sliver plated

    Operating temperature: -40°C~+110°C

    Flame class: UL94-V0

    Suitable cable: 1.31mm²/4mm²/6mm²(AWG16/12/10)

    Locking system: Snap in

    Connecting system: crimping connection

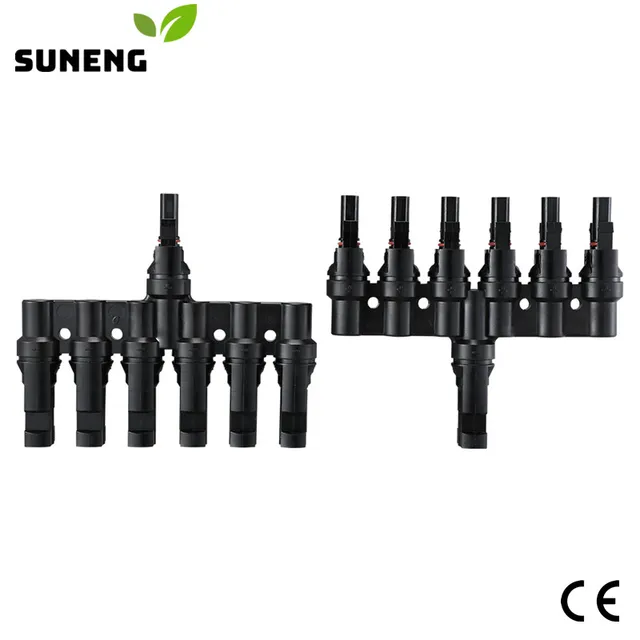

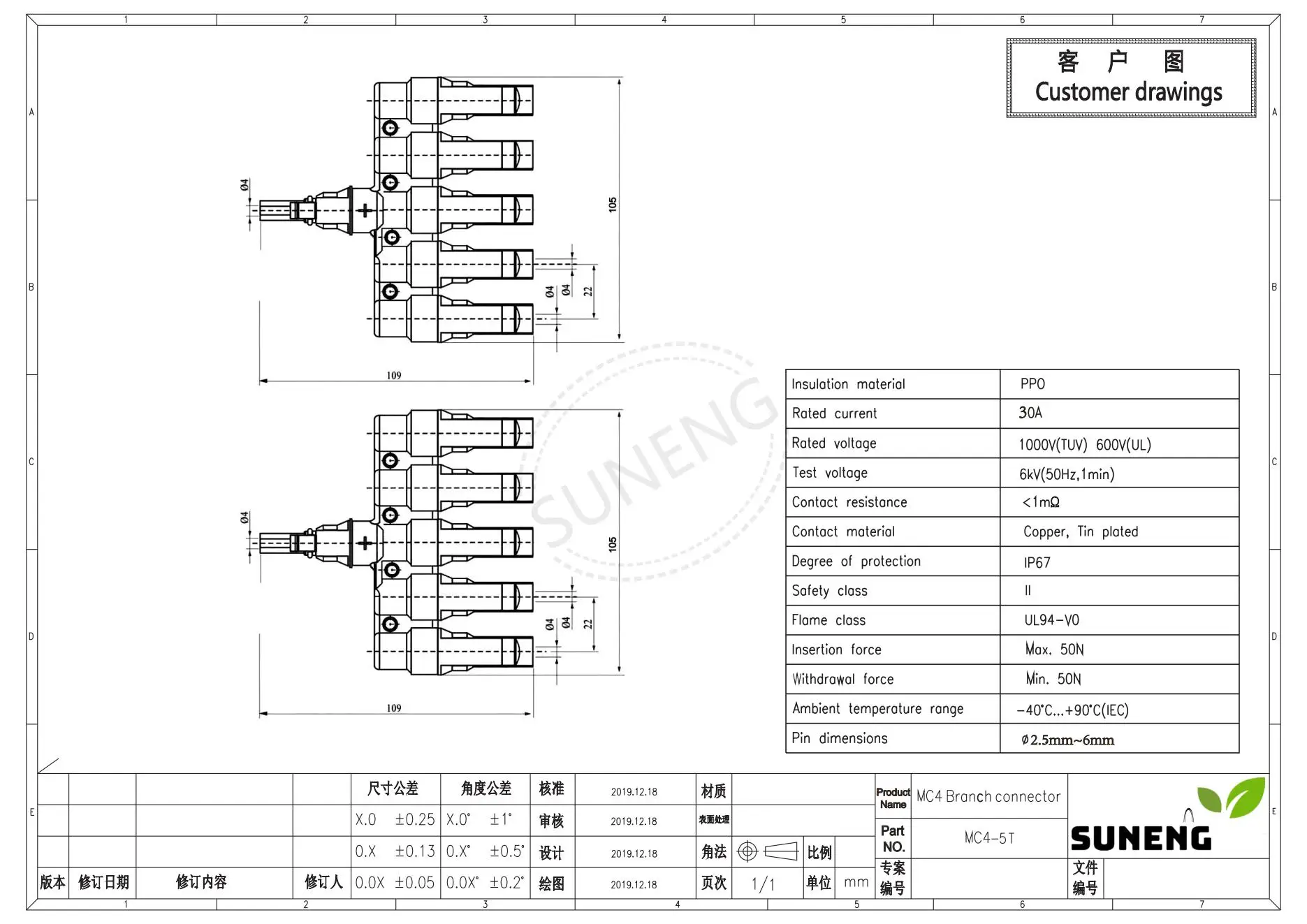

    6 in 1 branch Connector


    Specification:

    Rated voltage: 1000V DC

    Rated current: 30A

    Waterproof degree: IP67

    Material: PPO

    Contact material: Copper sliver plated

    Operating temperature: -40°C~+110°C

    Flame class: UL94-V0

    Suitable cable: 1.31mm²/4mm²/6mm²(AWG16/12/10)

    Locking system: Snap in

    Connecting system: crimping connection

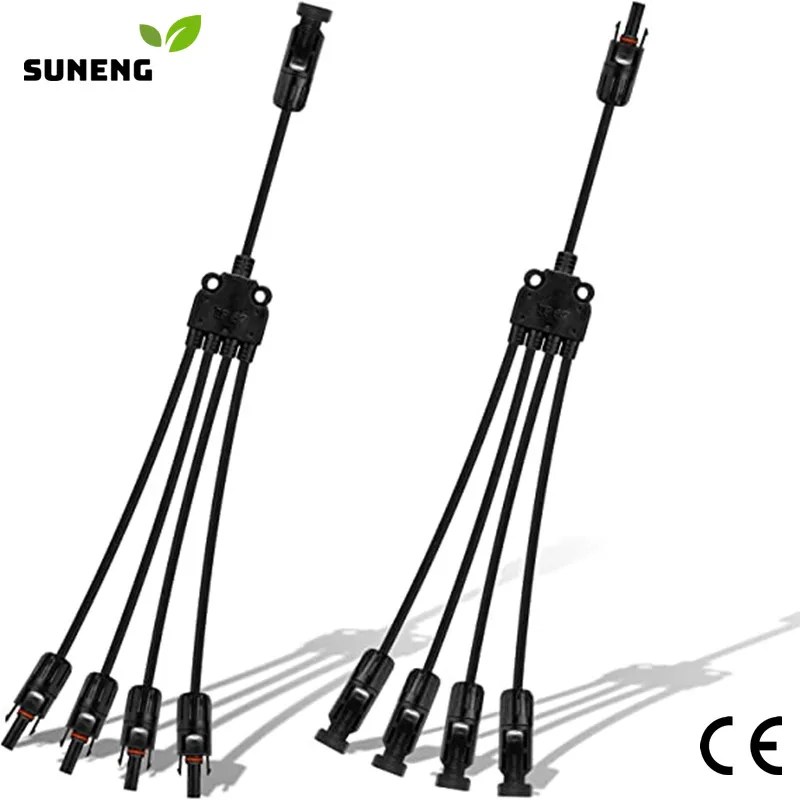

    4 in 1 Y branch Connector

    Specification:

    Rated voltage: 1000V DC

    Rated current: 30A

    Waterproof degree: IP67

    Material: PPO

    Contact material: Copper sliver plated

    Operating temperature: -40°C~+110°C

    Flame class: UL94-V0

    Suitable cable: 1.31mm²/4mm²/6mm²(AWG16/12/10)

    Locking system: Snap in

    Connecting system: crimping connection

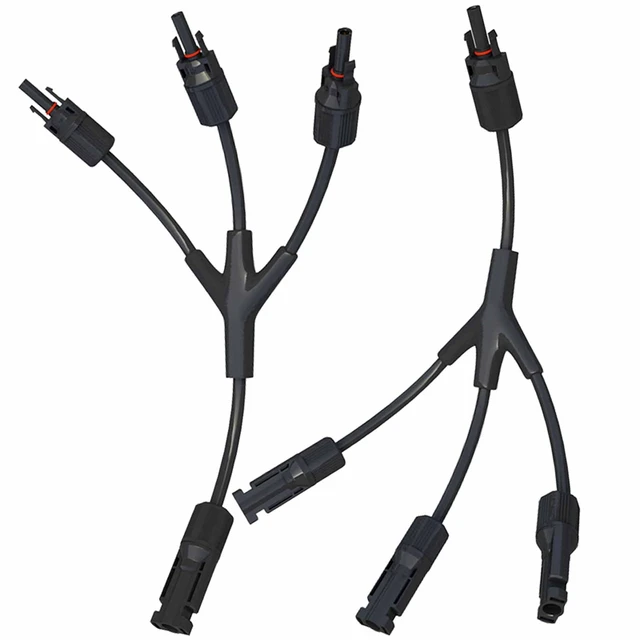

    3 in 1 Y branch Connector

    Specification:

    Rated voltage: 1000V DC

    Rated current: 30A

    Waterproof degree: IP67

    Material: PPO

    Contact material: Copper sliver plated

    Operating temperature: -40°C~+110°C

    Flame class: UL94-V0

    Suitable cable: 1.31mm²/4mm²/6mm²(AWG16/12/10)

    Locking system: Snap in

    Connecting system: crimping connection

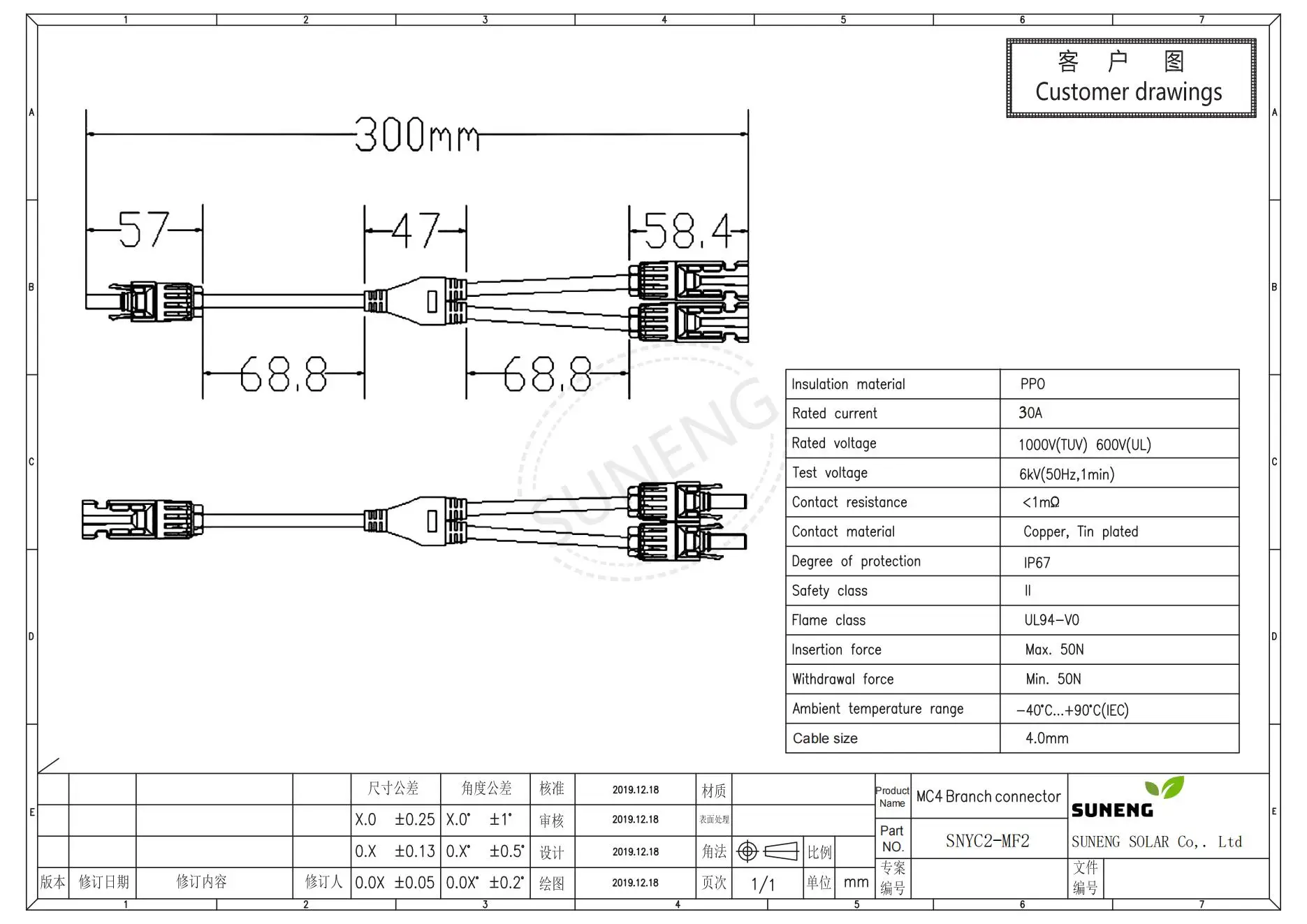

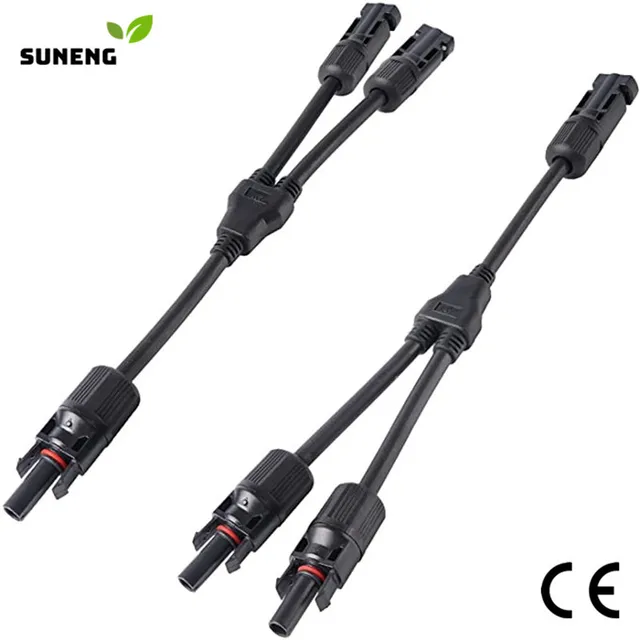

    2 in 1 Y branch Connector

    Specification:

    Rated voltage: 1000V DC

    Rated current: 30A

    Waterproof degree: IP67

    Material: PPO

    Contact material: Copper sliver plated

    Operating temperature: -40°C~+110°C

    Flame class: UL94-V0

    Suitable cable: 1.31mm²/4mm²/6mm²(AWG16/12/10)

    Locking system: Snap in

    Connecting system: crimping connection
