Special note:The controller is inside the pump,it is ourNEWdesign and series.
DC24V 300W solar irrigation pump with inside MPPT controller max head 100m3SES1.5/100-D24/300
Attention:
1. The quoted price including: Pump+inside MPPT controller+Accesories,WITHOUT SOLAR PANELS;

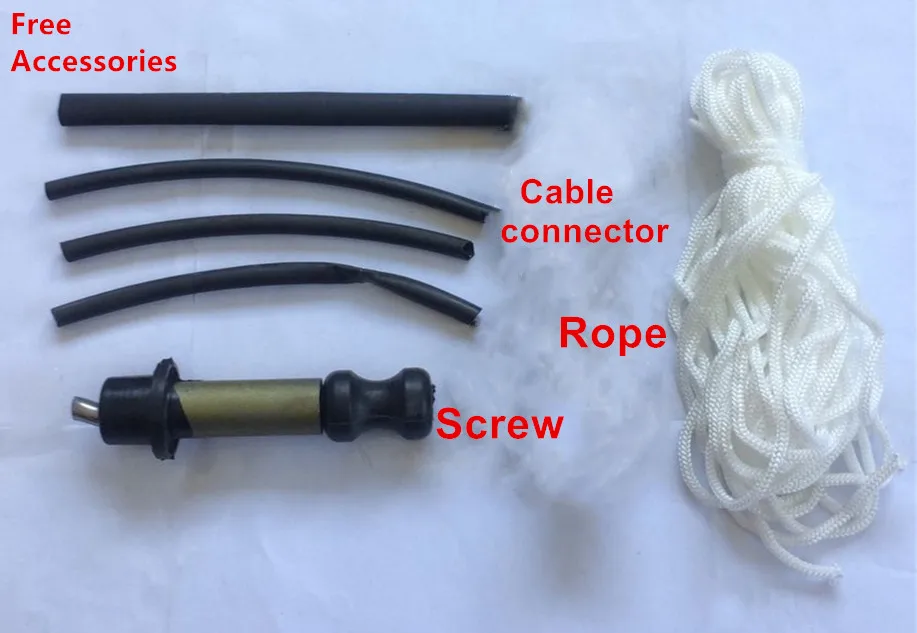

2. Free accessories including:

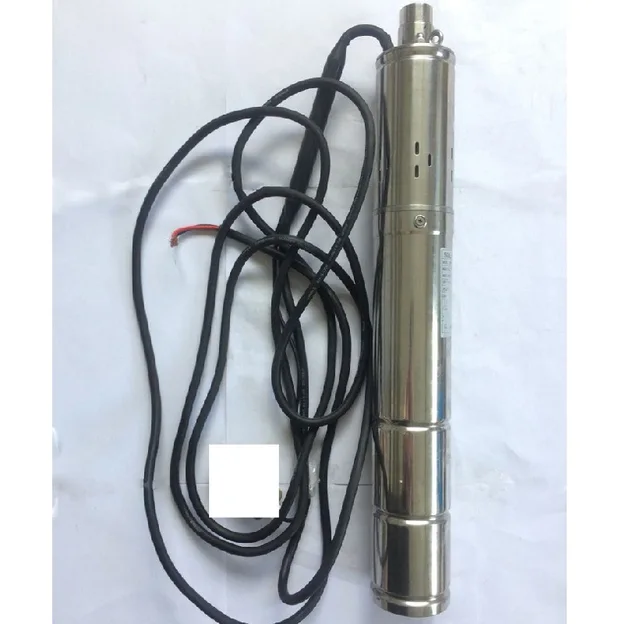

a. pump with 3meter cable

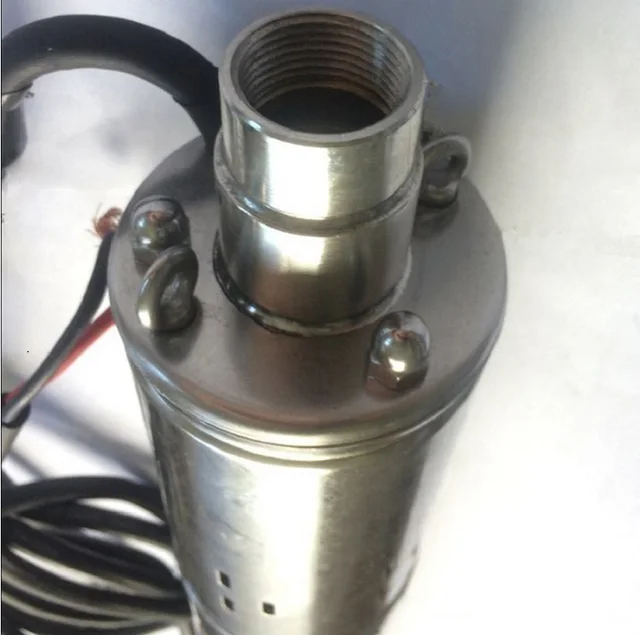

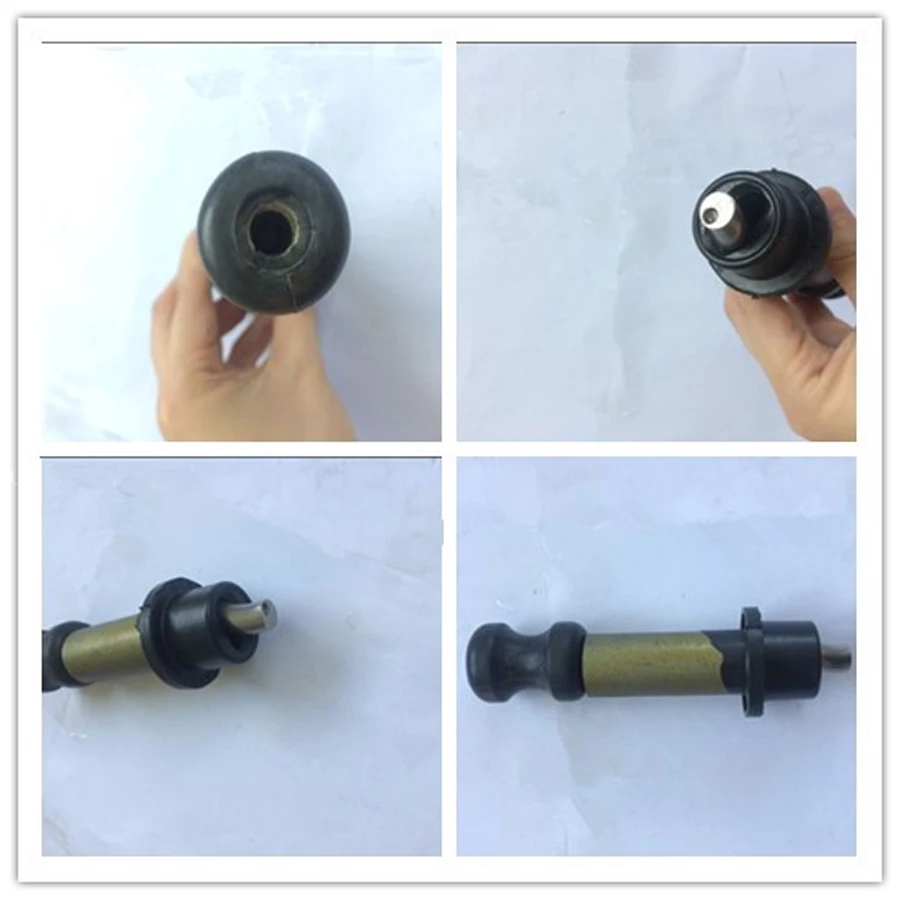

b. spare parts:1 pc stainless steel screw

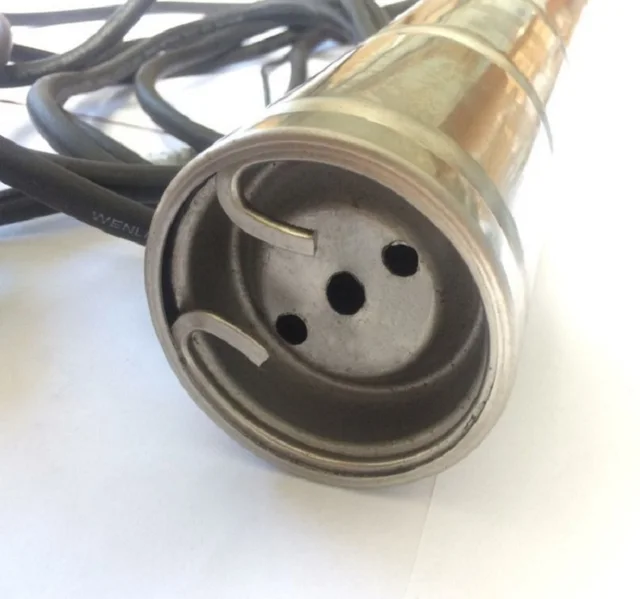

c. Cable connector
Suggest Solar Panel Assemble：2pcs 36v 220-340w, in parallel
|
|
|
|
|
|
|
|
|
|
Solar Water Pump,Solar Irrigation Pump,Screw Pump,Submersible Pump

Descriptions

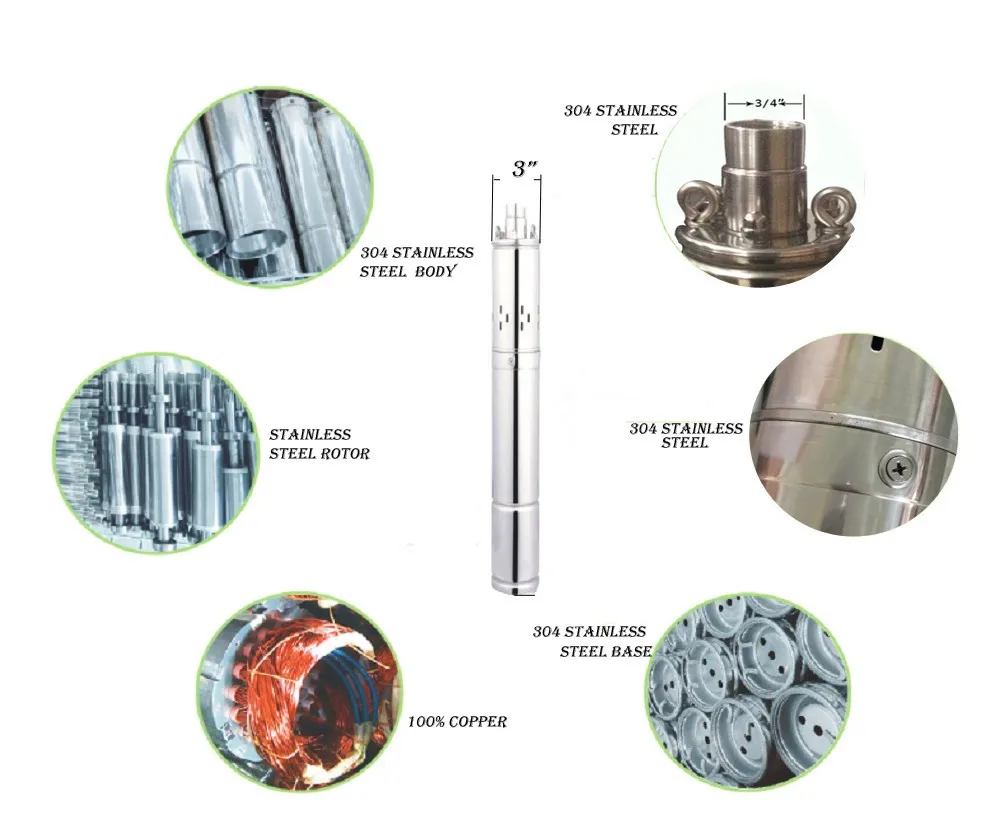

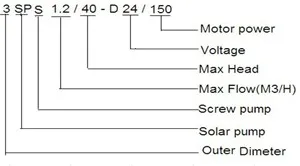

1. MODEL IDENTIFICATION

(1)Selecting thesolar panelof the pumping system
a. Solar PV panel (solar panel) selection
power of PV panels (watts) =Rated power of pump (watts) x( 1. 3 ~ 1.6)
voltage of solar panel = Rated voltage of pump (volt) x 1.5
the controller will already be matched to the pump by your supplier
eg A 300 watt pump needs a minimum of 390 watts of PV panels to drive it (300w x 1.3 = 390w)
b. You may need combinations of panels, especially for the larger pumps. During connection of solar panels, you have to get the solar panels in series to reach the rated voltage of the pump, then in parallel to reach the rated current of the pump
Panels in paralleldoublethe current and the wattage of the panels
Panels in seriesdoublethe voltage and the wattage of the panels
e.g. 2 x 12V/ 100 W panels in parallel → 12 V/200W system
2 x 12V/ 100 W panels in series → 24V/200W system
(2)Selecting thebatteryof the pumping system
Current drawn by the pump = pump power / the voltage
In the case of a 24 volt 300 watt pump
300 watts divided by 24 = 12.5 amps
2 x 100AH 12volt batteries in series = 100 Ah at 24 volts
100Ah divided by 12.5 amps x 0.6 = 4.8 hours of backup
Batteries in parallel, add the Ah, voltage stays the same
Batteries in series, add the voltage, Ah stays the same
2. INSTALLATION

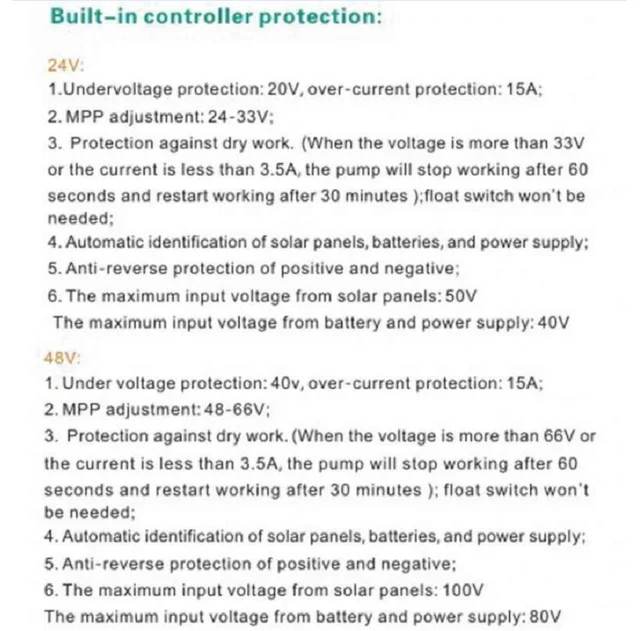

(1) Function of solar pump controller box
Low voltage protection(It is automatic)
Over voltage protection(It is automatic)
a. Over current protection(It is automatic)
b. Protection for low water level in well (WC,WH sensors)
c. Protection for full water level in tank (TC,TH sensors)
d. Controlling running speed of motor (Speed regulator)
e. Delay for restart working function (Timer regulator is to be set a period of rest time after the pump stops working from low water level protection in well)
f. MPPT function. (Maximum Power Point Tracking)
g. Battery(Battery can be connected to the controller directly for storing electricity.)
|
Factory
Application
If you do not know how to choose the model,pls tell the question below,i will choose for you.
1. What is your requirements for the flow rate of the pump? that means how many cubmic meter water you need per hour.
2. what is your requirements for H1 =? H2= ? H3= ? H4 = ?
FAQ
1.Is the price includes the solar panels?
No. If solar panel needed, Pls kindly let us know, we will quote accordingly (But we suggest purchasing PV panles locally to save high courier cost, further more, big size solar panels is very fragile during delivery via express)
2.How to choose the model?
Pls let me know your flow rate,Head,Power,Size,etc.We’ll choose suitable one for you.
3.Can I buy just the pump without the controller?
No,our pump can only work with our controller.
4.How about the shipping?
All our products are ,we’ll choose suitable express for you.
5.How is the packaging?
Normally,we use export carton box.
6.What about the warranty?
Our 3SPS series time of warranty is 3 years.
7.To receive my pumps soon,anything else should I check with Top King when I pay for the order now?
Your correct address with name, mobile, telephone, post cord.
Your contact ways: Email or other ways.
Your tax number( to Brazil, Chile,etc.)
8.If you’ve any other questions,welcome to contact us or leave us message.
Thank you for your visiting! Have a nice day.
