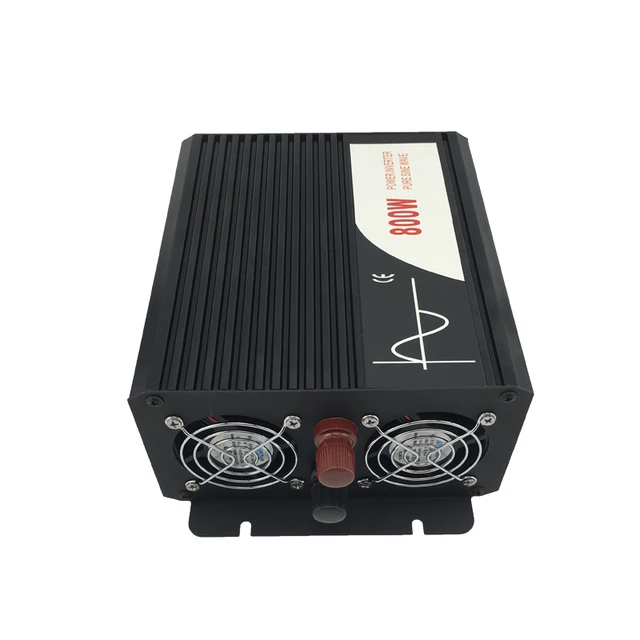

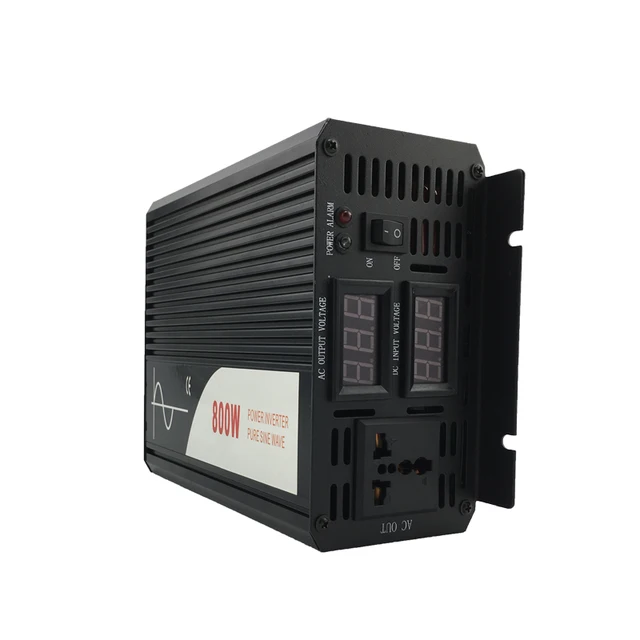

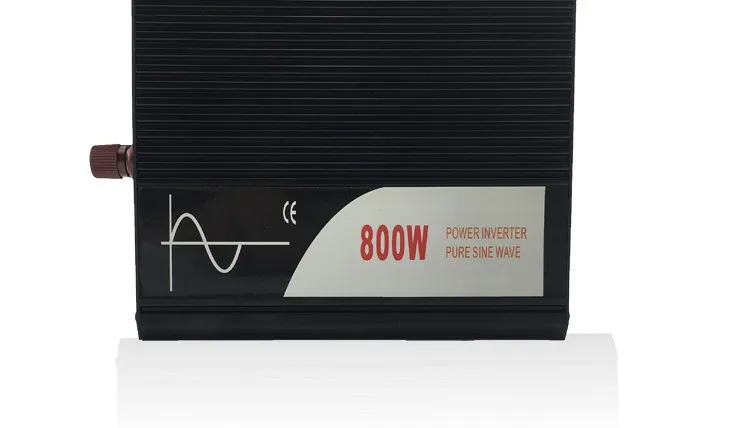

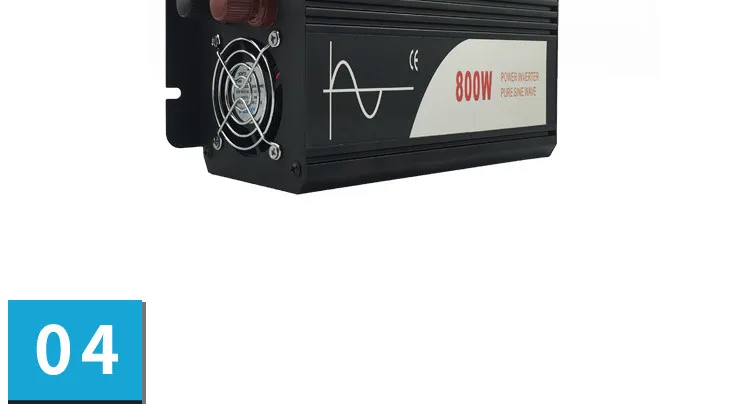

800W pure sine wave solar power inverter DC 12V 24V 48V to AC 110V 220V

R2670.23
  • Input Voltage:

  • Output Voltage:

  • Socket Type:

Buy With Confidence

100% Safe Payment


;

  • Description



    Please Note:


    If you order this type inverter, please leave

    me message(about input voltage, output voltage, output frequency).

    1. Input voltage: DC 12V / 24V / 48V / 60V / 72V / 96V / 110V(only one voltage can be choose),
    2. Output voltage: AC100V / 110V / 115V / 120V / 220V / 230V / 240V (only one voltage can be choose),
    3. Output frequency:  50Hz or 60Hz (optional)(only one frequency can be choose),

     Please leave your clear delivery information, special for phone number and contact name.

    more discount pls contact with me

    800W_01800W_02800W_03800W_04800W_05800W_06800W_07

    Model sp12/110-800L sp24/110-800L sp48/110-800L sp12/220-800L sp24/220-800L sp48/220-800L
    Continuous Power 800W
    Surge Power 1600W
    Frequency 50HZ±0.5HZ or 60HZ±0.5HZ

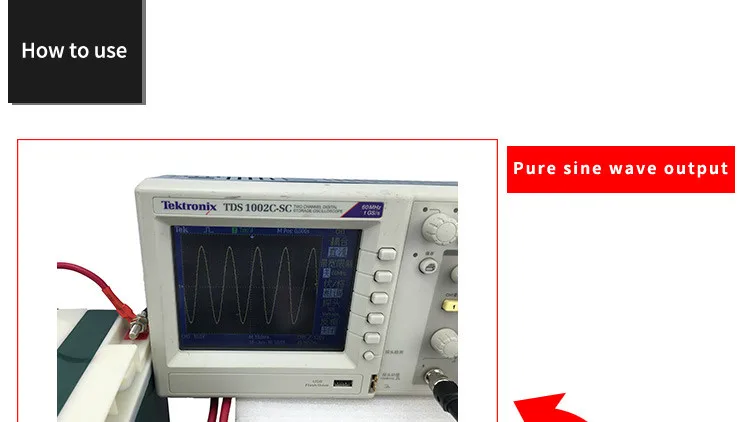

    Wave Form Pure Sine Wave
    AC Regulation THD<3%(Linear Load)
    Output Efficiency 92%
    DC Voltage DC12V DC24V DC48V DC12V DC24V DC48V
    AC Voltage 100VAC or 110VAC or 120VAC ±5% 220VAC or 230VAC or 240VAC ±5%
    No Load Current Draw 0.55A 0.3A 0.15A 0.55A 0.3A 0.15A
    DC Voltage Range 10-15.5V 20-31V 40-61V 10-15.5V 20-31V 40-61V
    Low Voltage Alarm 10.5±0.5V 21±0.5V 42±1V 10.5±0.5V 21±0.5V 42±1V
    Low Voltage Shut Down 10±0.5V 20±0.5V 40±1V 10±0.5V 20±0.5V 40±1V
    Over Voltage Shut Down 15.5±0.5V 31±0.5V 61±1V 15.5±0.5V 31±0.5V 61±1V
    Low Voltage Recovery 13±0.5V 24±0.5V 48±1V 13±0.5V 24±0.5V 48±1V
    Over Voltage Recovery 14.8V±0.5V 29V±0.5V 59V±1V 14.8V±0.5V 29V±0.5V 59V±1V
    Protection Low Voltage/Over Voltage LED Alarm and Automatic Recovery.
    Overload LED Alarm
    Over Temperature LED Alarm and Automatic Recovery.
    Short Circuit LED Alarm and Automatic Recovery.
    Working Temperature -10°- +50°
    Storage Temperature -30°- +70°
    Production Size 235*165*85(mm)

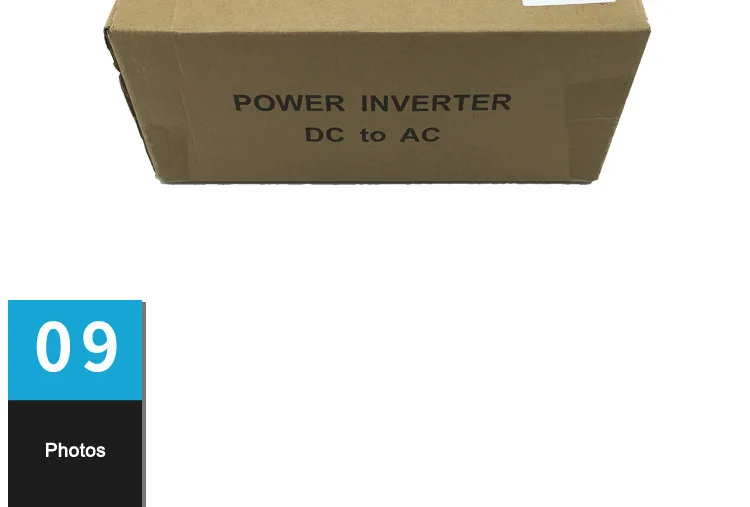

    Package Size 285*155*115(mm)
    N.W/G.W 2.2/2.8(kg)
    Start soft-start
    Qty/Carton 6
    Carton Size 475×370×490
    Carton Weight 19.5KG

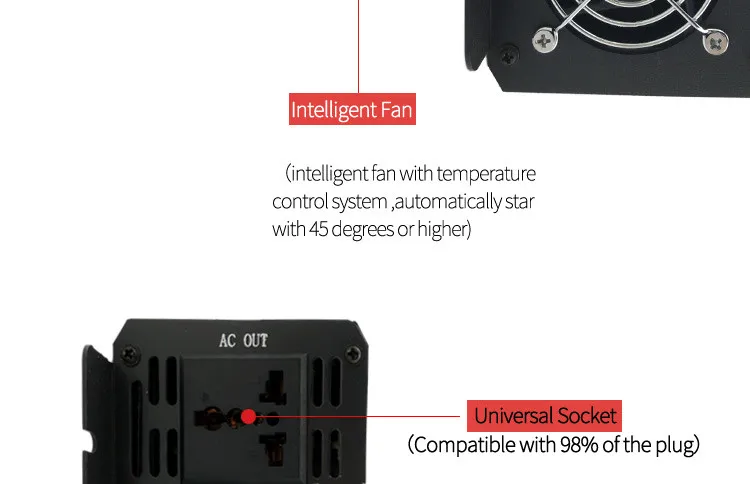

    Cooling Way

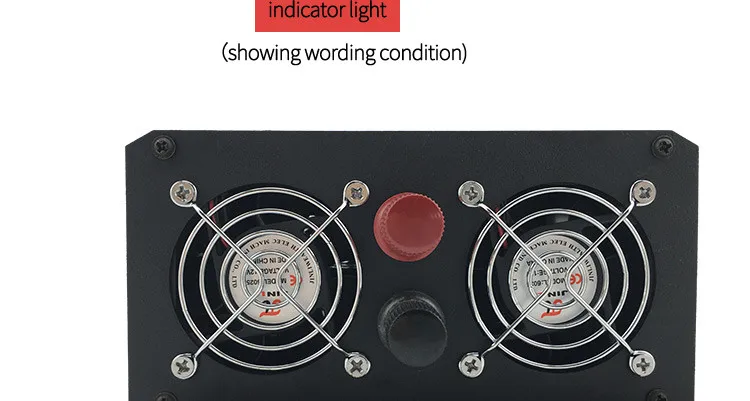

    Intelligent Cooling Fan

    800W_08800W_09800W_10800W_11800W_12800W_13800W_14800W_15800W_16800W_17800W_18800W_19800W_20800W_21800W_22800W_23800W_24800W_25800W_26800W_27800W_28800W_29800W_30800W_31800W_32800W_33800W_34800W_35800W_36800W_37800W_38800W_39800W_40
