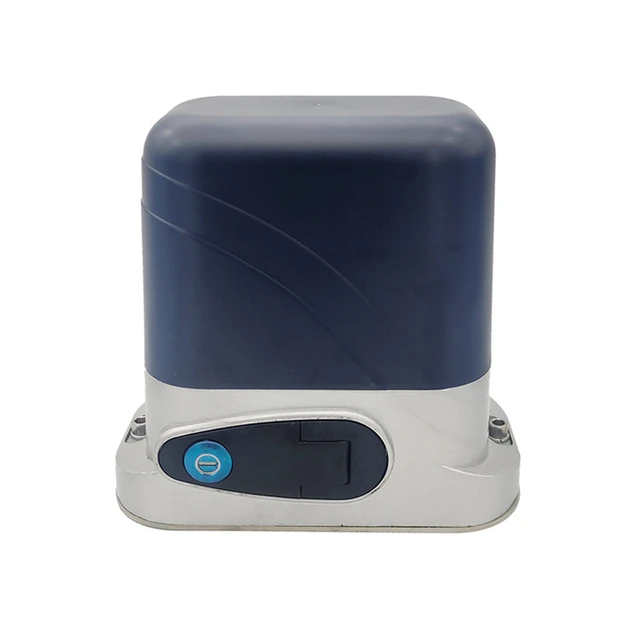

500kg Solar Energy Automatic Sliding Gate Opener Gear Drive with 4m Nylon Rack Remote Control Electric Sliding Door Motor Engine

1.Waterproof

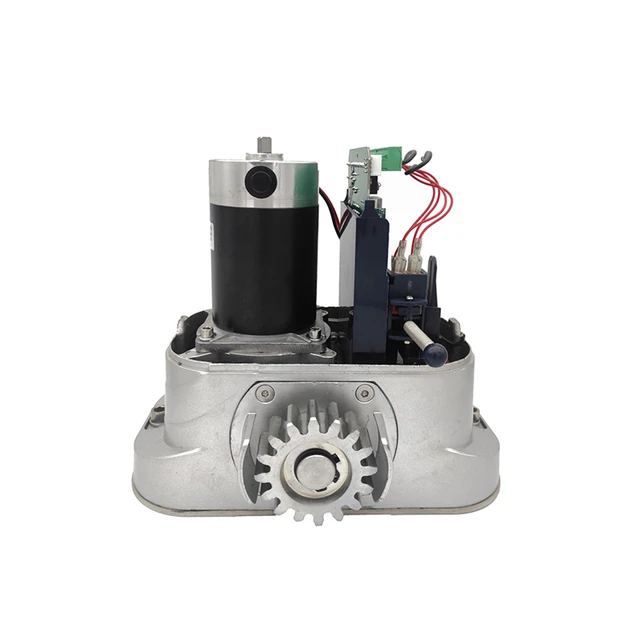

2.Metal Gear Drive

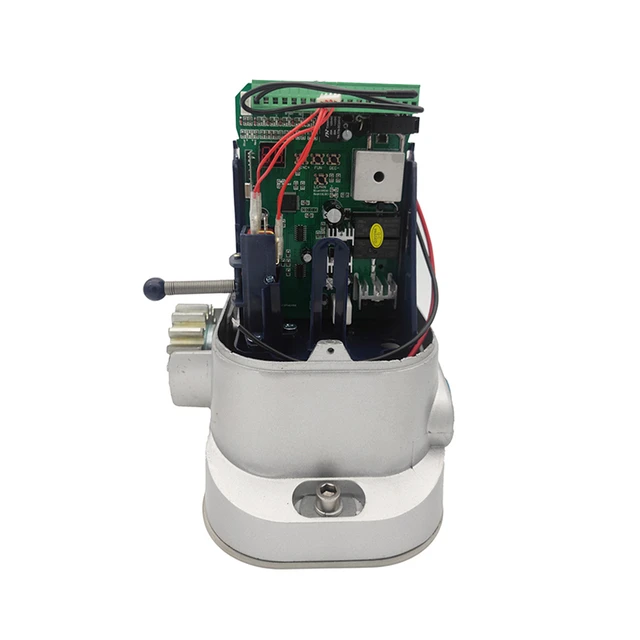

3.All in one internal Motor and Weather Proof control panel

4.In some countries the cold climate, we add antifreeze oil inside the motor, It can work in an environment of – 25 °

5.220V by default, contact the seller if 110V is required

Parameters:

1. Working temperature of motor:-25°C～ +55°C

2. Working humidity:≤85%

3. Power supply:24DC±10% (AC110VAC220V ±10%,Need to connect the converter ) 50Hz/60Hz

4.6. Output gear module:M=4

7. Output gear number:Z=16

8. Open(close) speed:v=12m/min

9. Rated speed : 1400RPM

10. Maximum pull:1100N

11. Maximum load:500kg

12. Net weight:10KG

13.Remote control distance : ≤50meter

14.Packing : In a carton

Functions of sliding gate motors:

1. Totally integrated electrical mechanical system (Quantity of racks optional ).

2. Control board interface for optional impact-proof infrared photocells.

3. Can connect flashing light and keypad and electric lock and so on.

4. Automatic delayed closing.

5. Adjustable resistance sensitivity.

6. Auto gate stop and re-open when an obstacle is encountered.

7. Wireless remote control or wired remote control are optional.

8. 24VDC sliding gate opener can connect transformer and back up battery.

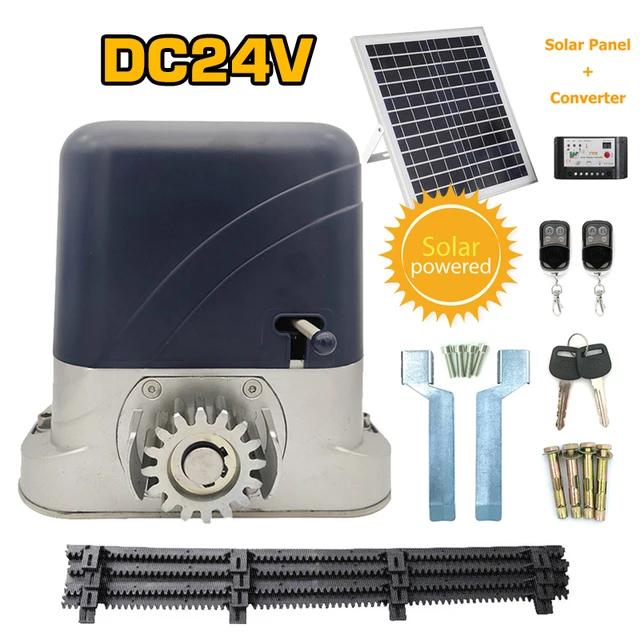

Packing List:

①1* Sliding Gate Opener(Drive motor)

②2* Release keys

③1* A set of Hardware Accessories

④2* Steel stopper

⑤2/4* Remote Controls

⑥1* English Manual

⑦4* 1m Nylon Racks

⑧1* Solar Panel

⑨Other optional accessories
