5 Pairs 1000V Solar PV Connector For Solar Panels And Photovoltaic Systems IP68 TUV Approved

R178.02
  • Color:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description



    High Quality Approved 1000V 30A SOLAR PV Connector For Solar Panel Connector UV Resistant



    SOLAR PV connector more details:

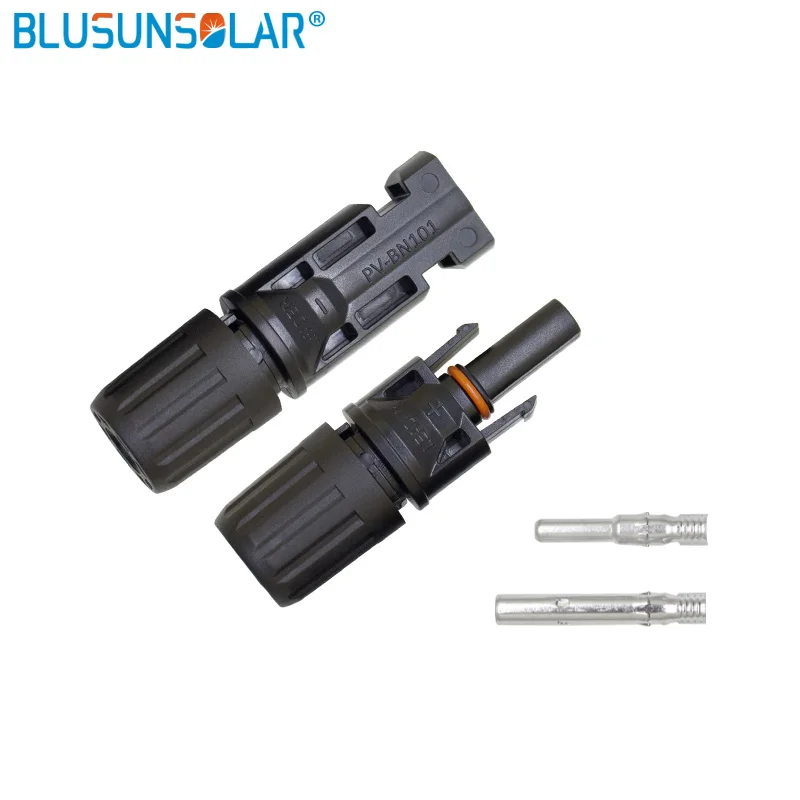

    Complete connector include

    Male house, female house, positive and negative terminal

    Insulation material:

    Polycarbonate

    Contact material

    Copper, Tin plated

    Contact resistance

    Less than 3m oHm

    Fixed form

    HFW

    Rated current

    30A

    Rated voltage

    1000V

    Test voltage

    6000 V (50Hz, 1Min)

    Degree of protection

    IP68

    Safety class

    2

    Flame calss

    94-V0

    Insertion force

    Less than 50N

    Withdrawal force

    More than 300N

    Ambient temperature range

    -40 degree – +90 degree

    Suitable cable

    2.5-6.0mm2 AWG14/12/10





    Main Drawing and demension:





    Certificate:
